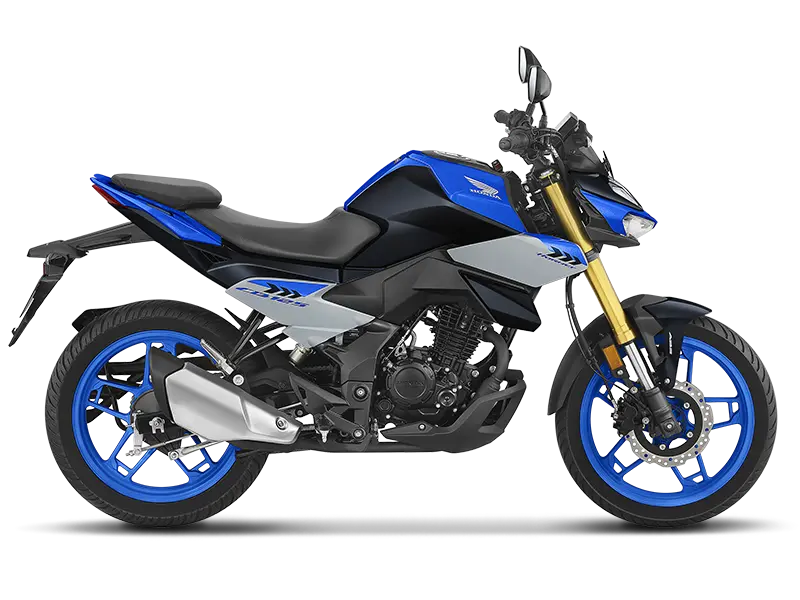

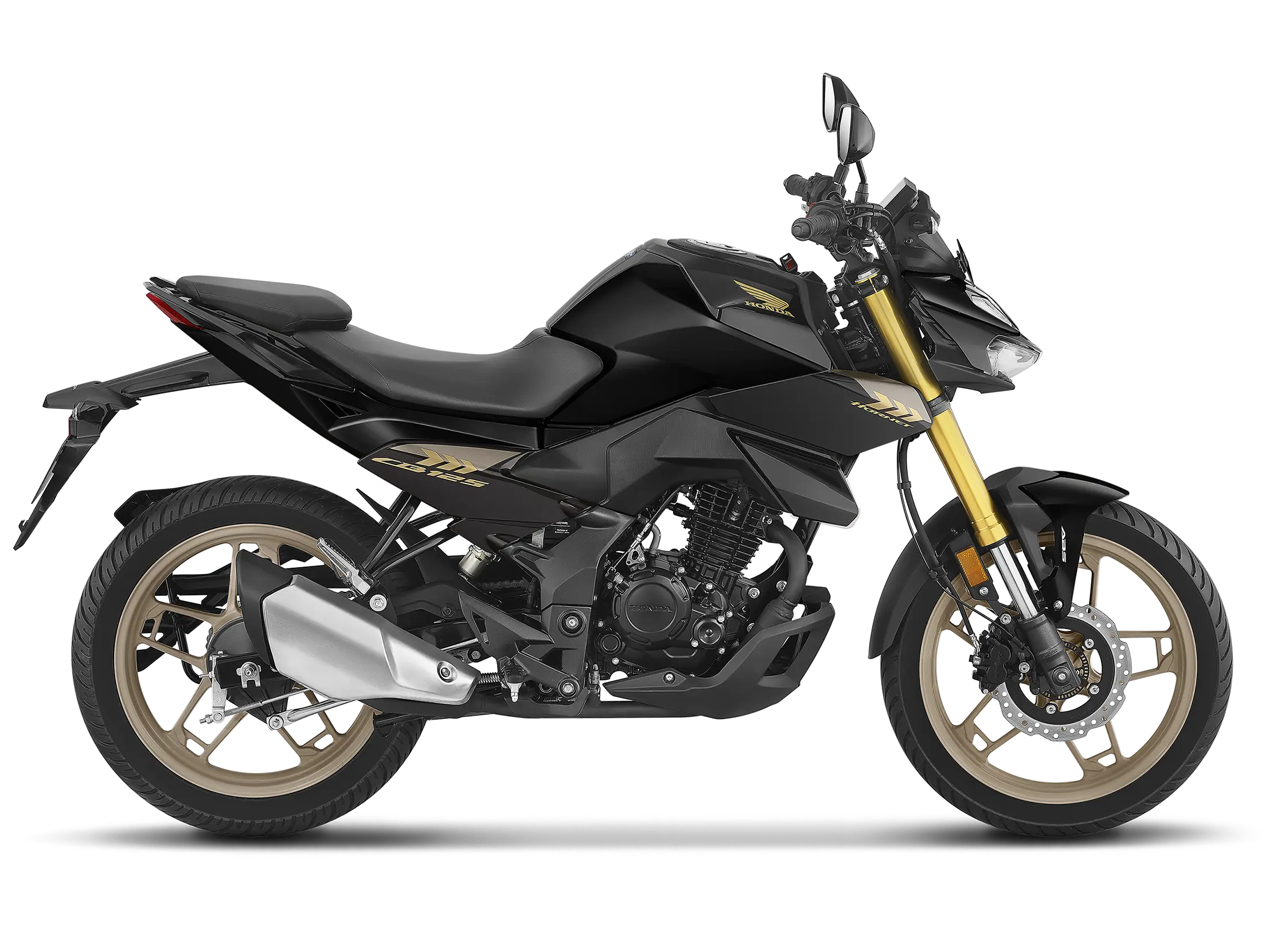

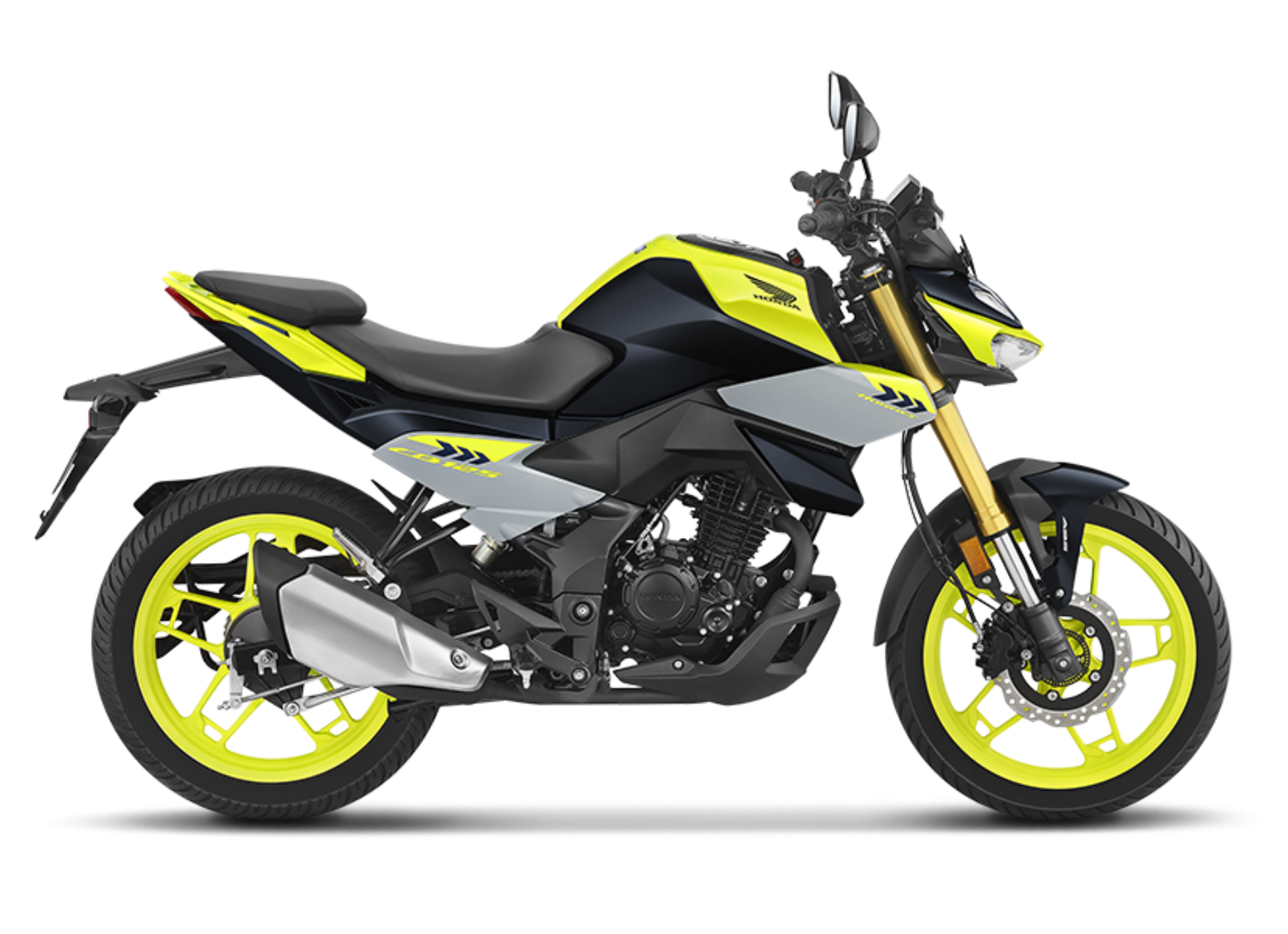

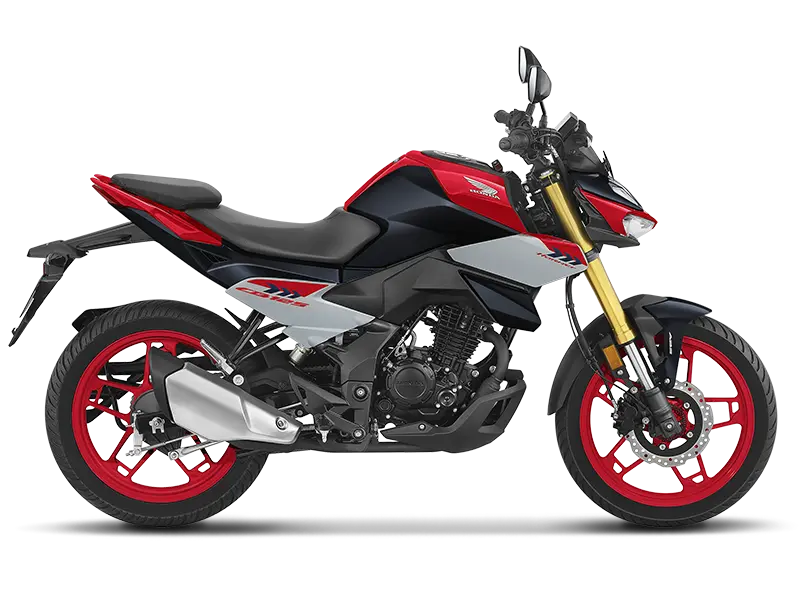

CB 125 Hornet
Specifications​
Body Dimensions
Type :
4 Stroke, SI Engine
Displacement :
123.94 cc
Max Engine Output :
8.2 kW @7500 rpm
Max Net Torque :
11.2 N-m @6000 rpm
Max Net Power :
NA
Fuel System :
PGM -FI
Bore X Stroke :
50.000 x 63.121 mm
Compression Ratio :
10.0:1
Starting Method :
Self Start
Engine
Kerb Weight :
124 kg
Length :
2015 mm
Width :
783 mm
Height :
1087 mm
Wheelbase :
1330 mm
Ground Clearance :
166 mm
Seat Height :
NA
Seat Length:
597 mm
Transmission
No Of Gears :
5 Gears
Clutch Type :
Multiplate Wet Clutch
Tyres & Brakes
Front tyre Size & Type :
80/100 – 17 M/C 46P, Tubeless
Rear Tyre Size & Type :
110/80 – 17 M/C 57P, Tubeless
ABS :
NA
Fornt Brake Type & Size :
Disc – 240 mm
Rear Brake Type & Size :
Drum – 130 mm
Frame & Suspension
Frame Type :
Diamond Type
Front Suspension :
Upside down Fork (USD)
Rear Suspension :
Monoshock
Electricals
